Ceramic Oilfield Parts

Ceramic Technologies makes a full line of MWD pulser wear parts. Parts like Gap Sub Insulators, Extended Servo orifices, piston wear sleeves, ceramic poppet tips, and poppet shaft orfices are made from high-tech ceramics to provide the longest lasting and trouble free parts in the industry parts are made from sub micron 88%WC/12% Cobalt, silicon nitride or zirconia depending on the part and application. We stock all parts for immediate same day shipping. A full brochure with current pricing is available by email.
Category:
Silicon Nitride Sucker Rod Balls

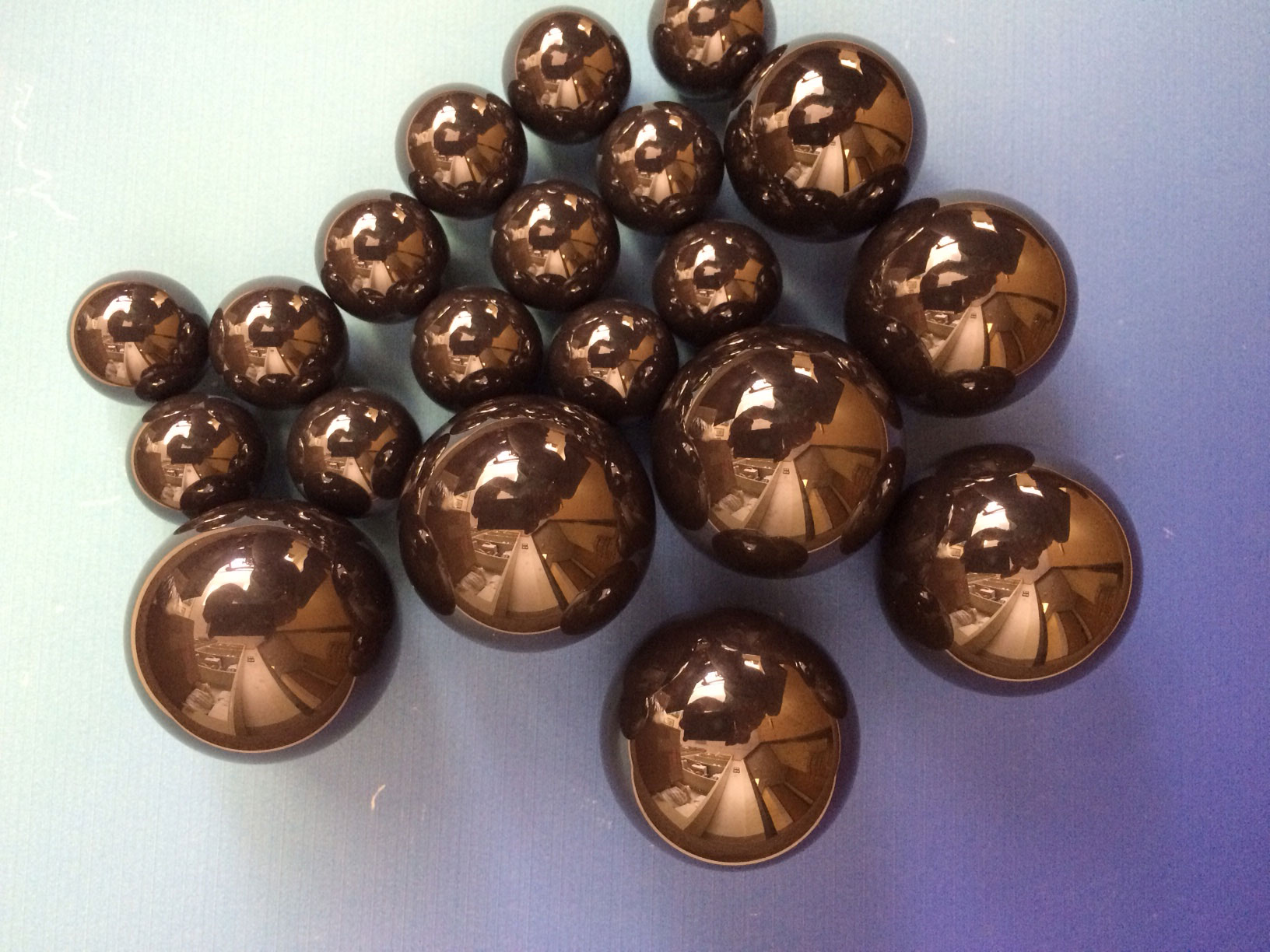

Ceramic Technologies’ high precision Silicon Nitride sucker rod balls offer long lasting performance combined with ultra-high precision. Don’t settle for Grade 40 balls when you can utilize more precise and spherical Grade 25 balls. This means better roundness and sealing capabilities. Our Si3N4 balls are tough so you won’t see cracking or breaking problems either. Go with the proven performance leader.

Our Grade 25          Our Competitors Grade 40+

Sphericity                                     .000025”                           .00005”

Lot variation                            .000025”                        +/-.000050

Nominal Ball Dia Tolerance          .0001”                             +/-.0002”

Maximum Surface Roughness         2 Microinches                   3 Microinches



API Ball Sizes

  • 11/16”
  • 3/4”
  • 7/8”
  • 15/16”
  • 1”
  • 1 1/8”
  • 1 1/4”
  • 1 3/8”
  • 1 1/2”

You have a choice. Why use an inferior ball? Call today for Free Samples.
